KGB-D Serie Rod Pin Bead Mill
izicelo
I-lithium cathode kunye nezixhobo ze-anode, i-ceramics zoshishino (i-alumina, i-zirconia kunye nezinye i-oxides, i-silicon carbide, i-boron carbide, i-zirconium silicate, i-silicon nitride, i-nitrogen compounds, i-nano polishing fluid (i-alumina, i-zirconia, i-cerium oxide, njl.),
igraphite, igraphene, izinto eziphambili, iiseramics ze-elektroniki, i-nano paste, inki ye-Inkjet, i-Ink (i-Ceramics, i-UV, i-Glass, njl.), i-pharmaceutical, i-pesticide, imathiriyeli yamagnetic.
isishwankathelo
Yintoni intsimbi yokusila?

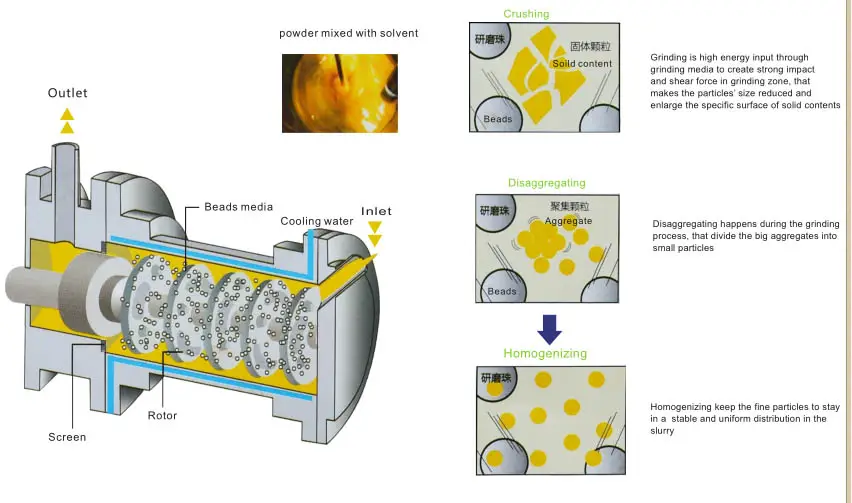

Ilitye lokusila elimanzi luhlobo lomatshini wokulungisa izinto eziqinileyo kulwelo. Igalelo lamandla aphezulu ngokusebenzisa imidiya yokusila ukudala i-shear eqinile kunye nefuthe lokunyanzeliswa kokusabalalisa, ukusabalalisa kunye ne-homogenizing amaqhekeza kwi-slurry.
Ziziphi iingenelo ?
Ungayikhetha njani intsimbi yokusila, amanqaku EZINGUNDOQO?
A. Umyinge wokuqukuqela kwelitye lokusila umisela ukuba amasuntswana ahlala ixesha elingakanani kwindawo yokusila, nto leyo echaphazela ukucoleka kwamasuntswana, imveliso kunye nokuhanjiswa kobungakanani bamasuntswana.
B. Isantya somgca we-rotor sinquma ubuninzi bamandla e-kinetic adluliselwe kwimidiya yokusila echaphazela ukusebenza kakuhle kokugaya, ukucolwa kweengqungquthela kunye nokulahlekelwa kwempahla yokusila. I-12-16 m/s sisantya sokusebenza ngokubanzi.
C. Ukukhethwa kobungakanani bemidiya yemidiya yingongoma ephambili, ngokuqhelekileyo ngamaxesha angama-1000 ubukhulu be-particle ekujoliswe kuyo. Ngokwethiyori, i-diameter encinci yamaso yi, ngakumbi indawo yoqhagamshelwano ikhona kunye neempumelelo ezincinci zobungakanani besuntswana. Nangona kunjalo, isaxhomekeke kwizinto ezininzi ezifana nobukhulu bamasuntswana okuqala. Kufuneka sikhethe amaso achanekileyo ukuze silingane neemfuno ezahlukeneyo zokusila.
D. Ngokuqhelekileyo, izinga lokuzaliswa kweendaba zokugaya liphezulu, ukugaya ngokufanelekileyo kuphezulu. Kwaye uluhlu lwezinga lokuzalisa lijikeleze i-75% -90% ngokwe-viscosity yeemveliso. Ukuba ngaphezulu kakhulu kuya kubangela ukuvaleka kwesefu kunye nengxaki yobushushu obuphezulu.
E. Ubuninzi bobuninzi bokusila imidiya-phezulu ubuninzi bobuninzi buya kudala ukucheba okunamandla kunye namandla empembelelo kwintshukumo, ukusebenza kakuhle kokusila kuko.
F. Umsantsa wokwahlula isikrini ngokuqhelekileyo ngamaxesha angama-1/2-1/4 wedayamitha yemidiya yokusila. Ukuba ubungakanani bokuqala besuntswana bukhulu kakhulu, bunokuthi buthintele isihluzo, kungoko kufuneka sithathele ingqalelo inkqubo yokusila ezibini.

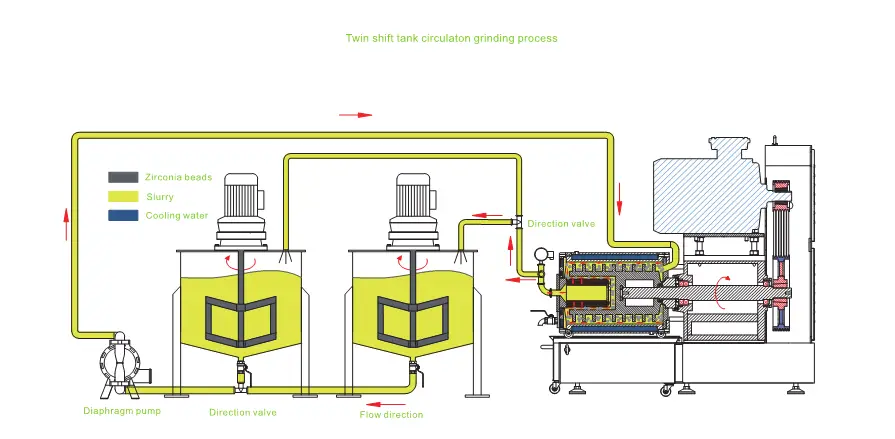

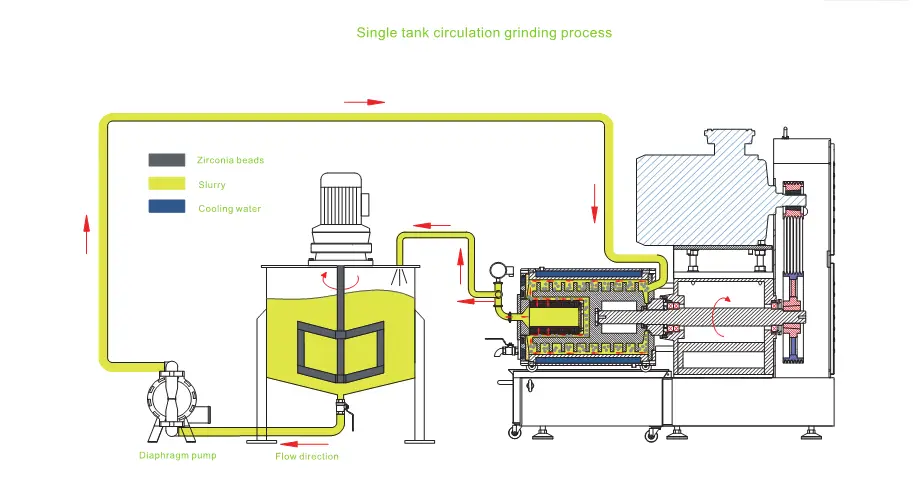

Principle Working
Uthelekiso phakathi kwentsimbi yokusila kunye nebhola
Uphawu/Inzuzo
● Inkqubo iyonke elawulwa yi-PLC kunye nekhompyutha yemizi-mveliso, ukuqonda inkqubo yolawulo olukrelekrele ukusuka ekutyiseni imathiriyeli ekrwada, ukuxutywa kwangaphambili, ukucola okucokisekileyo, ukuhluzwa, ukususwa kwentsimbi, ukutshiza ukomisa kunye nepakethe yokunkonkxa.
● Ujongano lwesikrini sokuchukumisa isibonisi kunye nokubeka iliso kwimo yokusebenza yenkqubo yonke.
● Ukuseta kwangaphambili iresiphi yenkqubo yokusila eyohlukeneyo ukuze uqonde inkqubo yokusila ngokulula.
● Gcina ngokuzenzekelayo kwaye uhlalutye idatha esebenzayo
● Izinzwa ezichanekileyo ezichanekileyo kunye neegeyiji zigcina uzinzo kunye nokusebenza kokhuseleko
● Ukugcina iindleko zabasebenzi, ukuphucula ukusebenza kakuhle kunye nokudala izibonelelo ezingakumbi kubathengi bethu
Isicelo jikelele
Amandla amatsha_Ibhetri yeLithium-ion, i-lsilicon carbon, igraphene, icarbon nanotubes, i-alumina membrane slurry, i-PVDF membrane slurry, njl.
Powder_Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Silicon Materials, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, izinto zamagnetic, njl.
I-Chemical_Ukwambathisa iimoto, ipeyinti yefenitshala, ipeyinti enqanda ukubola, ipeyinti ekhethekileyo, incama yombala, i-inki ye-ceramic, i-inki ye-UV, i-inki yeglasi, i-inki ye-offset, izinto zokuthambisa, i-pharma, ukutya, ezolimo kunye nabanye ukunika iseti epheleleyo yezisombululo.

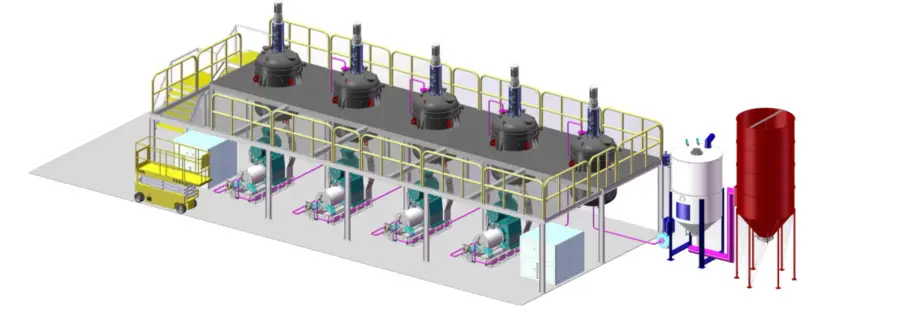

Iqonga lomgca wemveliso ezenzekelayo
Ishiti yedatha
| imodeli | Umthamo Osebenzayo | amandla (Township) | Ubungakanani bebhetshi (L) | Ubungakanani beendaba (Mm) | ubunzima (kgs) | amacala (Mm) |
| I-KGB-D-1L | 1L | 5.5 | 3-20 | 0.6-2.0 | 190 | * * 480 400 550 |
| I-KGB-D-5L | 5L | 11 | 30-200 | 0.6-2.0 | 450 | * * 900 700 1500 |
| I-KGB-D-25L | 25L | 30 | 80-800 | 0.6-2.0 | 1100 | * * 1700 1100 1900 |
| I-KGB-D-30L | 30L | 30/37 | 80-1000 | 0.6-2.0 | 1300 | * * 1750 1100 1900 |
| I-KGB-D-50L | 50L | 45 | 200-2000 | 0.6-2.0 | 1700 | * * 2100 1500 1750 |
| I-KGB-D-60L | 60L | 55 | 250-2500 | 0.6-2.0 | 1850 | * * 2150 1500 1750 |
| I-KGB-D-100L | 100L | 90 | 300-4000 | 0.6-2.0 | 2600 | * * 2600 1650 1900 |
| I-KGB-D-150L | 150L | 130 | 500-4000 | 0.6-2.0 | 3500 | * * 2900 1650 2100 |
data Technical
● Ubungakanani bokuqala: ＜100um
● Emva komhlaba: 1- 20um
● Isinyibilikisi: Isiseko samanzi, isiseko se-oyile
● Viscosity: ＜40000CPS
● Ubungakanani bemidiya yokugaya: 0.6-2.0mm

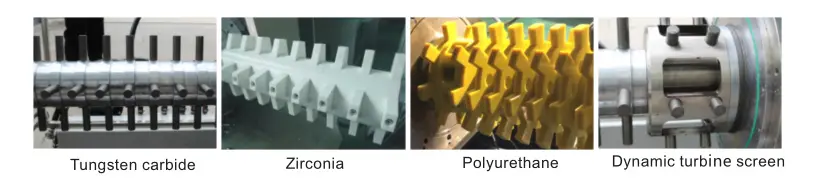

● Izinto zeRotor: Zirconia,Silicon carbide,Tungsten Carbide,Hard alloy,Polyurethane
● Impahla yesitya sangaphakathi: iZirconia, iSilicon carbide, iTungsten Carbide, iHard alloy, iPolyurethane.
Isincedisi esisebenzisekayo
| imodeli | Umthamo Osebenzayo | amandla (Township) | Ubungakanani bebhetshi (L) | Ubungakanani beendaba (Mm) | ubunzima (kgs) | amacala (Mm) |
| I-KGB-D-1L | 1L | 5.5 | 3-20 | 0.6-2.0 | 190 | * * 480 400 550 |
| I-KGB-D-5L | 5L | 11 | 30-200 | 0.6-2.0 | 450 | * * 900 700 1500 |
| I-KGB-D-25L | 25L | 30 | 80-800 | 0.6-2.0 | 1100 | * * 1700 1100 1900 |
| I-KGB-D-30L | 30L | 30/37 | 80-1000 | 0.6-2.0 | 1300 | * * 1750 1100 1900 |
| I-KGB-D-50L | 50L | 45 | 200-2000 | 0.6-2.0 | 1700 | * * 2100 1500 1750 |
| I-KGB-D-60L | 60L | 55 | 250-2500 | 0.6-2.0 | 1850 | * * 2150 1500 1750 |
| I-KGB-D-100L | 100L | 90 | 300-4000 | 0.6-2.0 | 2600 | * * 2600 1650 1900 |
| I-KGB-D-150L | 150L | 130 | 500-4000 | 0.6-2.0 | 3500 | * * 2900 1650 2100 |
data Technical
● Ubungakanani bokuqala: ＜100um
● Emva komhlaba: 1- 20um
● Isinyibilikisi: Isiseko samanzi, isiseko se-oyile
● Viscosity: ＜40000CPS
● Ubungakanani bemidiya yokugaya: 0.6-2.0mm
● Izinto zeRotor: Zirconia,Silicon carbide,Tungsten Carbide,Hard alloy,Polyurethane
● Impahla yesitya sangaphakathi: iZirconia, iSilicon carbide, iTungsten Carbide, iHard alloy, iPolyurethane.
