Ukupholisa umoya kwiPlanethi yeBhola Mill
izicelo
I-cryogenic planetary ball mill isetyenziswa kakhulu ekugayeni okucolekileyo kakhulu phantsi kweemeko zobushushu obuphantsi ezicelwe zizixhobo. Xa kuthelekiswa nokufakwa kolwelo lwe-nitrogen epholileyo, i-planetary ball mill enomoya obandayo ilula kakhulu kwaye kulula ukuyisebenzisa, ikwagcina iindleko, kwaye ayisebenzisi amandla amaninzi.
yokuzonwabisa
isishwankathelo

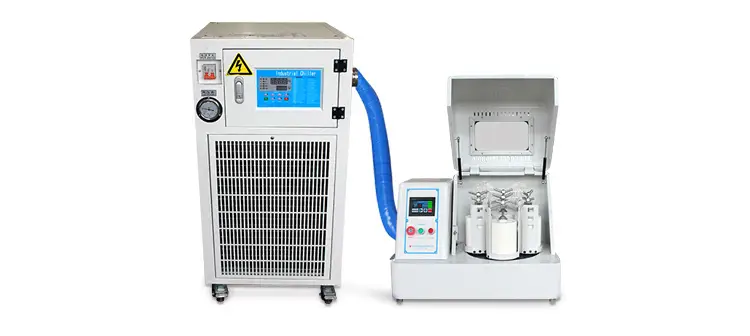

I-Cryogenic planetary ball mill yindibaniselwano ye-planetary mill kunye nezixhobo zokufriji. Uninzi lwezixhobo ziya kufudunyezwa ngexesha lokusila ngesantya esiphezulu ngenxa yokungqubana okanye ukusabela okungaphandle, okunokukhokelela kutshintsho kwiimpawu zomzimba nezekhemikhali zezinto kwaye kuvelise isiphumo esibi sokusila. I-planetary ball mill enobushushu obuphantsi isetyenziswa kakhulu kwinkqubo yokusila izinto efuna ulawulo olungqongqo lobushushu.
Principle Working
I-cryogenic planetary ball mill ineetanki ezine zokugaya iibhola ezifakwe kwi-turntable enye. Xa i-turntable ijikeleza, i-axis yetanki yenza iintshukumo zeplanethi kwaye iibhola ezikwiitanki ziyagaya kwaye zixube iisampulu ngentshukumo yesantya esiphezulu. Imveliso inokuqhekeza kwaye idibanise iimveliso ezahlukeneyo zezinto ezahlukeneyo kunye ne-granularity ngeendlela ezomileyo okanye ezimanzi. Ubuncinci be-granularity yomgubo ocoliweyo bunokuba mncinci njenge-0.1mm.
Uphawu/Inzuzo

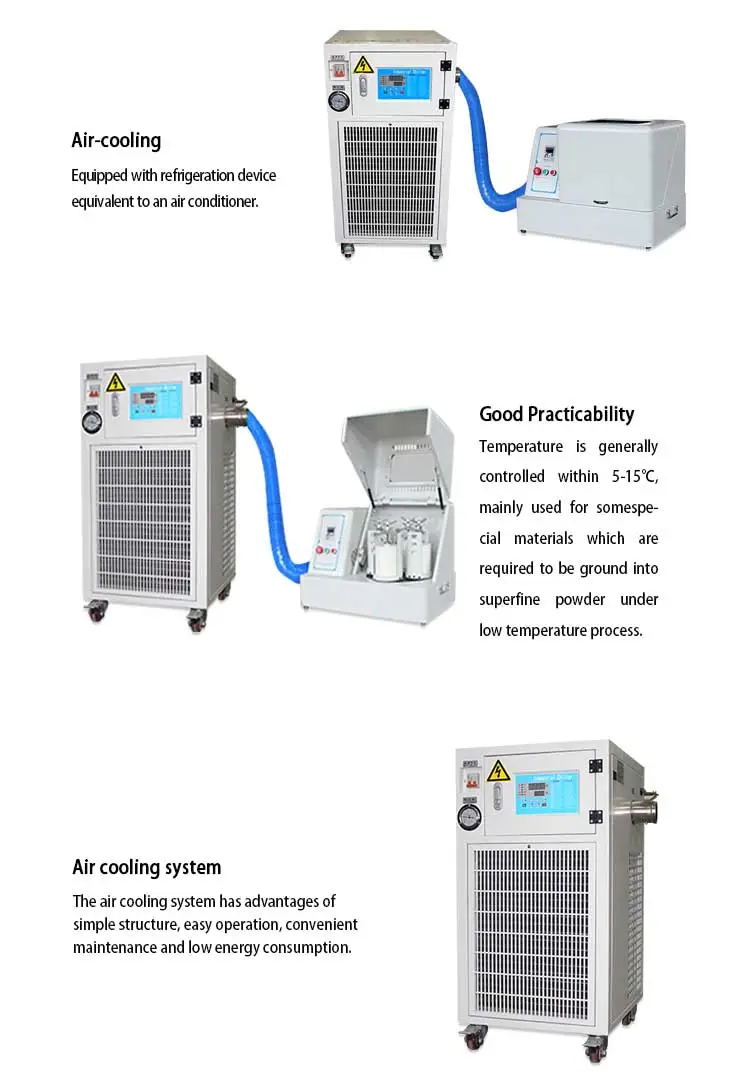

I-Cryogenic (ulawulo lobushushu obuphantsi) i-planetary ball mill yindibaniselwano ye-planetary mill kunye nesixhobo sokupholisa umoya. Umgaqo wokupholisa ocinezelweyo we-air-conditioner usetyenziswa kwisixhobo sokupholisa umoya. Ubushushu obuveliswa kukugrumba bunokususwa ngokukhawuleza ngumjikelo wegesi wokupholisa umoya. Ngokomahluko wobushushu obuphakathi, ubushushu bendawo yokugrumba ibhola bunokulawulwa ngaphakathi kwe-5-15℃. Olu hlobo lwe-ball mill lusetyenziswa kakhulu ekugrumbeni okuncinci kakhulu phantsi kweemfuno zezinto zobuchwepheshe bobushushu obuphantsi. Isixhobo sokupholisa umoya sinezibonelelo zesakhiwo esilula, ukusebenza okulula, ukugcinwa okulula kunye nokusetyenziswa kwamandla aphantsi.
1. Ifanelekile kwizixhobo ezifuna ukugaywa okucolekileyo kakhulu phantsi kobushushu obuphantsi.
2. Isakhiwo esilula.
3. Ukusebenza ngokulula.
4. Ulondolozo olufanelekileyo.
5. Ukusetyenziswa kwamandla aphantsi.
Ishiti yedatha
Iphepha leDatha yoBugcisa leTencan Planetary Ball Mill
| Indlela yeDrayivu | Ukuqhuba kweGiya |
| Indlela yokusebenza | Iingqayi ezimbini okanye ezine zokusila zingasetyenziselwa ukusila ngakunye |
| Ubukhulu besakhono seMathiriyeli | Ngaphantsi kwe-1/3 yevolumu yejagi nganye Ubungakanani bomthamo opheleleyo: ngaphantsi kwe-1/3 yomthamo weejagi zizonke |
| Ubungakanani bokutya | Izinto ezithambileyo nezikrwada ≤ 10mm Ezinye izinto ezinzima ≤ 3mm |
| Imveliso Granularity | I-granularity encinci inokufezekiswa kwi-0.1μm |
| Isantya sokujikeleza kweRashi | 1:02 |
| Ixesha Eliqhubekayo lokuSebenza eliPhezulu | Iiyure 72 |
| Izinto ezifumanekayo zeMill Jars | 304 intsimbi engatyiwa, 316l intsimbi, Zirconia, Nylon, PU, I-alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Amagqabaza: I-Cryogenic planetary ball mill yindibaniselwano yeplanetary ball mill kunye nesixhobo sokupholisa umoya, esinokuxhotyiswa ngeplanetary ball mill ethe nkqo, iplanetary ball mill ethe tye, iplanetary ball mill ethe tye.
Itheyibhile 1 Iiparameter zobugcisa zeCryogenic Planetary Ball Mill
| Umzekelo No. | I-Voltage | amandla | Isantya sokujikeleza | noise |
| XQM-1(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-2(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-4(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-6(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-8(C) | I-220V-50Hz | 1.5KW | 70-580 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-10(C) | I-220V-50Hz | 1.5KW | 70-580 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-12(C) | I-220V-50Hz | 1.5KW | 70-580 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-20(C) | I-380V-50Hz | 4.0KW | 50-430 ngomzuzu | Ngaphantsi kwe-65db |
| XQM-40(C) | I-380V-50Hz | 5.5KW | 40-390 ngomzuzu | Ngaphantsi kwe-68db |
| XQM-60(C) | I-380V-50Hz | 7.5KW | 40-260 ngomzuzu | Ngaphantsi kwe-68db |
| XQM-100(C) | I-380V-50Hz | 11KW | 40-260 ngomzuzu | Ngaphantsi kwe-68db |
Itheyibhile 2 Iiparameter zobugcisa zeCryogenic Planetary Ball Mill
| Umzekelo No. | Isantya sokuLawula | Weight Net | Ubukhulu beNet |
| XQM-1(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-2(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-4(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-6(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-8(C) | ULawulo rhoqo | 150kgs | 900 * 600 * 640mm |
| XQM-10(C) | ULawulo rhoqo | 150kgs | 900 * 600 * 640mm |
| XQM-12(C) | ULawulo rhoqo | 150kgs | 900 * 600 * 640mm |
| XQM-20(C) | ULawulo rhoqo | 330kgs | 1200 * 750 * 920mm |
| XQM-40(C) | ULawulo rhoqo | 468kgs | 1400 * 850 * 1160mm |
| XQM-60(C) | ULawulo rhoqo | 900kgs | 1600 * 990 * 1250mm |
| XQM-100(C) | ULawulo rhoqo | 1250kgs | 1750 * 1140 * 1330mm |
Isincedisi esisebenzisekayo
Iphepha leDatha yoBugcisa leTencan Planetary Ball Mill
| Indlela yeDrayivu | Ukuqhuba kweGiya |
| Indlela yokusebenza | Iingqayi ezimbini okanye ezine zokusila zingasetyenziselwa ukusila ngakunye |
| Ubukhulu besakhono seMathiriyeli | Ngaphantsi kwe-1/3 yevolumu yejagi nganye Ubungakanani bomthamo opheleleyo: ngaphantsi kwe-1/3 yomthamo weejagi zizonke |
| Ubungakanani bokutya | Izinto ezithambileyo nezikrwada ≤ 10mm Ezinye izinto ezinzima ≤ 3mm |
| Imveliso Granularity | I-granularity encinci inokufezekiswa kwi-0.1μm |
| Isantya sokujikeleza kweRashi | 1:02 |
| Ixesha Eliqhubekayo lokuSebenza eliPhezulu | Iiyure 72 |
| Izinto ezifumanekayo zeMill Jars | 304 intsimbi engatyiwa, 316l intsimbi, Zirconia, Nylon, PU, I-alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Amagqabaza: I-Cryogenic planetary ball mill yindibaniselwano yeplanetary ball mill kunye nesixhobo sokupholisa umoya, esinokuxhotyiswa ngeplanetary ball mill ethe nkqo, iplanetary ball mill ethe tye, iplanetary ball mill ethe tye.
Itheyibhile 1 Iiparameter zobugcisa zeCryogenic Planetary Ball Mill
| Umzekelo No. | I-Voltage | amandla | Isantya sokujikeleza | noise |
| XQM-1(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-2(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-4(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-6(C) | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-8(C) | I-220V-50Hz | 1.5KW | 70-580 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-10(C) | I-220V-50Hz | 1.5KW | 70-580 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-12(C) | I-220V-50Hz | 1.5KW | 70-580 ngomzuzu | Ngaphantsi kwe-60db |
| XQM-20(C) | I-380V-50Hz | 4.0KW | 50-430 ngomzuzu | Ngaphantsi kwe-65db |
| XQM-40(C) | I-380V-50Hz | 5.5KW | 40-390 ngomzuzu | Ngaphantsi kwe-68db |
| XQM-60(C) | I-380V-50Hz | 7.5KW | 40-260 ngomzuzu | Ngaphantsi kwe-68db |
| XQM-100(C) | I-380V-50Hz | 11KW | 40-260 ngomzuzu | Ngaphantsi kwe-68db |
Itheyibhile 2 Iiparameter zobugcisa zeCryogenic Planetary Ball Mill
| Umzekelo No. | Isantya sokuLawula | Weight Net | Ubukhulu beNet |
| XQM-1(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-2(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-4(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-6(C) | ULawulo rhoqo | 93kgs | 750 * 470 * 564mm |
| XQM-8(C) | ULawulo rhoqo | 150kgs | 900 * 600 * 640mm |
| XQM-10(C) | ULawulo rhoqo | 150kgs | 900 * 600 * 640mm |
| XQM-12(C) | ULawulo rhoqo | 150kgs | 900 * 600 * 640mm |
| XQM-20(C) | ULawulo rhoqo | 330kgs | 1200 * 750 * 920mm |
| XQM-40(C) | ULawulo rhoqo | 468kgs | 1400 * 850 * 1160mm |
| XQM-60(C) | ULawulo rhoqo | 900kgs | 1600 * 990 * 1250mm |
| XQM-100(C) | ULawulo rhoqo | 1250kgs | 1750 * 1140 * 1330mm |
