I-Horizontal Planetary Ball Mill (Uhlobo oluKhanya)
izicelo
I-WXQM series planetary ball mill ineetanki ezine zokusila iibhola ezifakiweyo
kwi-turntable enye. Xa i-turntable ijikeleza, i-axis yetanki yenza
iintshukumo zeplanethi kwaye iibhola ezikwiitanki ziyasila kwaye zixube iisampulu
ngesantya esiphezulu. Le mveliso ingaqhekeza kwaye idibanise iimveliso ezahlukeneyo
zezixhobo ezahlukeneyo kunye nobuninzi obuneendlela ezomileyo okanye ezimanzi. Ubuncinane
ubuncinci beemveliso ezicoliweyo bunokuba buncinci njenge-0.1 micron (oko kukuthi)
1.0×10-4mm).
yokuzonwabisa
isishwankathelo

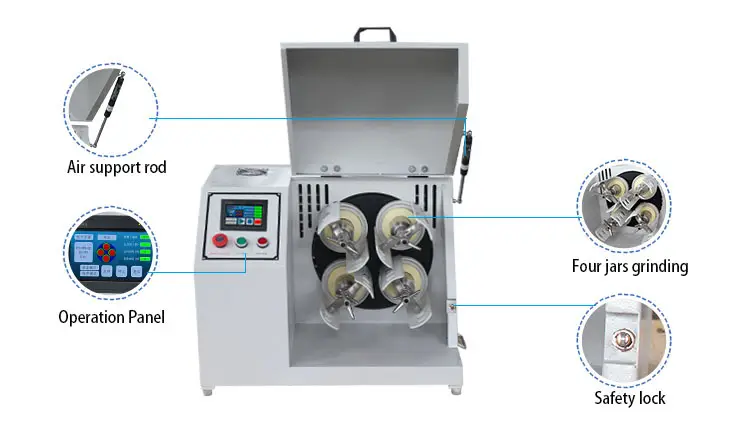

I-WXQM series planetary ball mill ineetanki ezine zokugaya iibhola ezifakwe kwi-turntable enye. Xa i-turntable ijikeleza, i-tank axis yenza iintshukumo zeplanethi kwaye iibhola ezikwiitanki ziyagaya kwaye zixube iisampulu ngentshukumo yesantya esiphezulu. Imveliso inokuqhekeza kwaye idibanise iimveliso ezahlukeneyo zezinto ezahlukeneyo kunye ne-granularity ngeendlela ezomileyo okanye ezimanzi. Ubuncinci be-granularity yeemveliso ezigayiweyo bunokuba buncinci njenge-0.1 micron (oko kukuthi) 1.0×10-4mm).
Principle Working
I-Planetary Ball Mill ineetanki ezine zokusila iibhola ezifakwe kwi-turntable enye. Xa i-turntable ijikeleza, i-axis yetanki yenza iintshukumo zeplanethi, iibhola kunye neesampuli ezingaphakathi kwiitanki zichaphazeleka kakhulu kwintshukumo yesantya esiphezulu, kwaye iisampulu ekugqibeleni zicolwa zibe ngumgubo. Izinto ezahlukeneyo zinokucolwa yi-mill ngendlela eyomileyo okanye emanzi. Ubuncinci be-granularity yomgubo ocoliweyo bunokuba mncinci njenge-0.1μm.
Uphawu/Inzuzo
1. Ukusebenza ngokulula.
2. Izixhobo ezizodwa ezinengxolo ephantsi.
3. Ulwakhiwo oluthe tyaba lwembiza yokusila luphepha izinto ezitshona ezantsi.
Iingenelo zeLebhu eQokeleyo yePlanetary Ball Mill
1. Isantya esijikelezayo esizinzile sokuhanjiswa kwegiya siqinisekisa ukuhambelana kunye nokuphindaphinda kovavanyo.
2. Umgaqo wokunyakaza kweplanethi yamkelwa kumatshini, onesantya esiphezulu, amandla amakhulu, ukusebenza kakuhle, iGranularity encinci.
3. Iisampuli ezine zomgubo ezivela kubukhulu obuhlukeneyo kunye nezixhobo ezahlukeneyo zinokuveliswa ngexesha elinye.
4. Umatshini ulawulwa yi-converter frequency; ungakhetha isantya esijikelezayo esifanelekileyo ngokweziphumo zovavanyo ezilindelekileyo. Isiguquli sixhotyiswe ngesixhobo se-voltage ephantsi kunye ne-over-current ukukhusela i-motor.
5. Iplanethi yebhola yokusila inemisebenzi yokucima amandla, ukuzibekela ixesha phambili kunye nokujikeleza okubuyela umva. Unokukhetha ngokukhululekileyo naziphi na iindlela zokusebenza zendlela enye, ukutshintshana, ukulandelelana, kunye nexesha ngokweemfuno zovavanyo ukuze uphucule ukusebenza kakuhle kokusila.

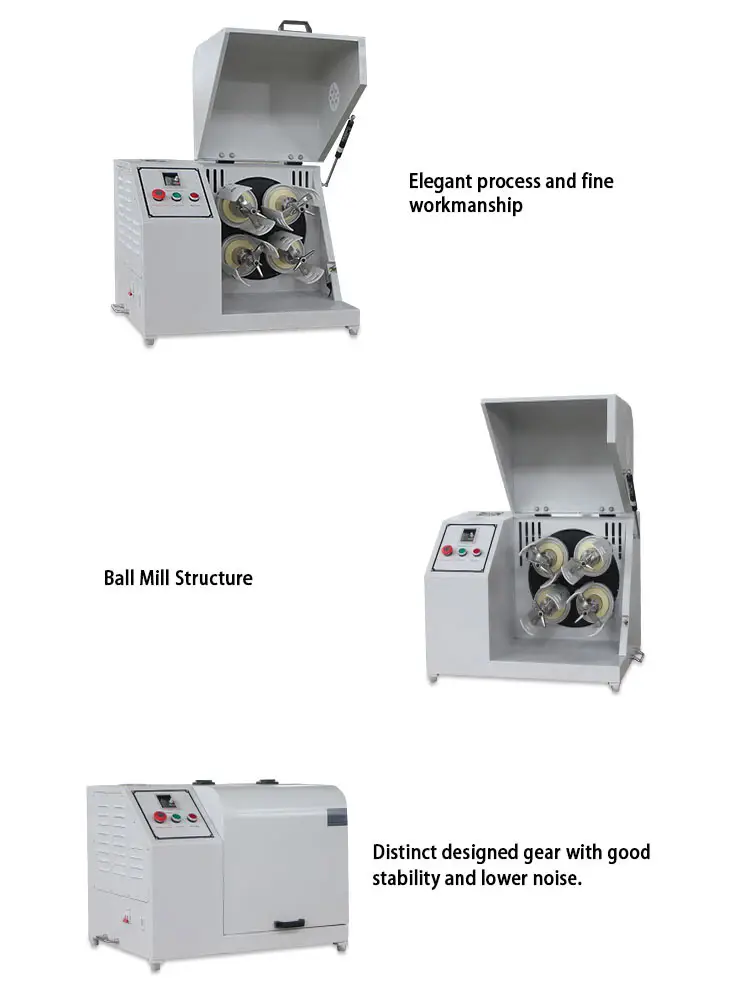

6. Iimpawu zobuchwephesha beTencan Ball Mill: Iziko eliphantsi lobunzima, ukusebenza okuzinzile, isakhiwo esincinci, ukusebenza okulula, ukhuseleko oluthembekileyo, ingxolo ephantsi, ilahleko encinci.
7. Iswitshi yokhuseleko ifakwe kumatshini ukunqanda ingozi yokhuseleko ukuba isiciko sokhuseleko sivulwa ngelixa umatshini usebenza.
Ishiti yedatha
| Iimpawu zobuGcisa kwi-Horizontal Planetary Ball Mill | |
| Indlela yeDrayivu | Ukuqhuba igiya kunye nebhanti yokuqhuba |
| Indlela yokusebenza | Iingqayi ezimbini okanye ezine zokusila zingasetyenziselwa ukusila ngakunye |
| Ubuninzi boMmandla wokuLayisha | Ngaphantsi kwe-1/3 yevolumu yejagi nganye Ubungakanani bomthamo opheleleyo: ngaphantsi kwe-1/3 yomthamo weejagi zizonke |
| Ubungakanani bokutya | Izinto zomhlaba≤10mm, ezinye izinto≤3mm |
| Imveliso Granularity | I-granule encinci ifikelela kwi-0.1 μm |
| Isantya esijikelezayo | 1/2 |
| Max. Ixesha eliqhubekayo lokuSebenza | 72hours |
| Iindlela ozikhethelayo zoLawulo lwesantya | I-conveter rhoqo kunye nolawulo lwexesha oluzenzekelayo |
| Izinto zeJar | 304 intsimbi engatyiwa, 316l intsimbi, Zirconia, Nylon, PU, I-alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Itheyibhile 1 Iiparameter zobuGcisa zeLebhu eQokeleyo yePlanetary Ball Mill
| Umzekelo No. | iinkcukacha | Iisayizi ezihambelanayo yeMill Jars | Ubungakanani obuhambelanayo | Iisayizi ezihambelanayo yeVacuum Mill Iingqayi |
| I-WXQM-0.4 | 0.4L | 50ml, 100ml | 4 PC | 50ml |
| I-WXQM-1 | 1.0L | 50ml, 100ml, 250ml | 4 PC | 50ml. 100ml |
| I-WXQM-2 | 2.0L | 50ml-500ml | 4 PC | 50ml, 100ml, 250ml |
| I-WXQM-4 | 4.0L | 250ml-1000ml | 4 PC | 50ml-500ml |
| I-WXQM-6 | 6.0L | 1L-1.5L | 4 PC | 50ml-750ml |
Itheyibhile 2 Iiparameter zobuGcisa zeLebhu eQokeleyo yePlanetary Ball Mill
| Umzekelo No. | I-Voltage | amandla | Isantya sokujikeleza | noise |
| I-WXQM-0.4 | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-58db |
| I-WXQM-1 | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| I-WXQM-2 | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| I-WXQM-4 | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
| I-WXQM-6 | I-220V-50Hz | 0.75KW | 70-670 ngomzuzu | Ngaphantsi kwe-60db |
Itheyibhile 3 Iiparameter zobuGcisa zeLebhu eQokeleyo yePlanetary Ball Mill
| Umzekelo No. | Isantya sokuLawula | Weight Net | Ubukhulu beNet |
| I-WXQM-0.4 | ULawulo rhoqo | 86kgs | 700 * 510 * 570mm |
| I-WXQM-1 | ULawulo rhoqo | 86kgs | 700 * 510 * 570mm |
| I-WXQM-2 | ULawulo rhoqo | 86kgs | 700 * 510 * 570mm |
| I-WXQM-4 | ULawulo rhoqo | 86kgs | 700 * 510 * 570mm |
| I-WXQM-6 | ULawulo rhoqo | 86kgs | 700 * 510 * 570mm |
