ILab Gxuma iMili yeBhola
isicelo
Isetyenziswa ngokubanzi kwimimandla ye-zirconia silicate, i-zirconia, i-alumina oxide, i-ceramic, ikhemikhali, imathiriyeli ye-elektroniki, imathiriyeli kazibuthe, ukwenza iphepha, ukupeyinta, iiminerali ezingezizo ezentsimbi, izinto ezintsha, ukugquma, igraphite, i-calcium carbonate, iyeza, njalo njalo. .
yokuzonwabisa
isishwankathelo
I-stirred ball mill ikakhulu iqulathe ijagi enemidiya yokusila yangaphakathi, isixhobo sokushukumisa kunye nezinye izixhobo ezincedisayo ezifana nesixhobo sokurisayikilisha, isixhobo sokupholisa, isixhobo sexesha, isilawuli sokuhlengahlengisa isantya, kunye njl. . I-stirred ball mill luhlobo lwezixhobo ezifanelekileyo ezisetyenziselwa ukutyumza izinto ezintsha kunye nepeyinti yophando kwiiyunivesithi, amaziko ophando kunye namashishini ngenxa yeempawu zayo zebhetshi encinci, amandla aphantsi kunye nexabiso eliphantsi.
Principle Working
Xa umatshini ujikeleza ngesantya esiphezulu phantsi kokuqhubela phambili kwe-axis engundoqo kunye nokugaya imidiya yokuhamba ngokungaqhelekanga ngexesha elifanayo, izinto zokusila zinokutyunyuzwa, zicolwe kwaye zichetywe zibe ngumgubo ocolekileyo we-granularity. Ubungakanani, imilo kunye nomlinganiselo ohambelanayo wemidiya yokugaya inokuchaphazela umphumo wokugaya. Ngokubanzi, ubukhulu besixhobo sokusila, kokukhona umgubo wokusila ulunge ngakumbi. Umlinganiselo ofanelekileyo wokulinganisa we-medias wokugaya kunye nokulungelelaniswa okufanelekileyo kwesantya sokujikeleza kunokufumana umphumo ongcono wokugaya.

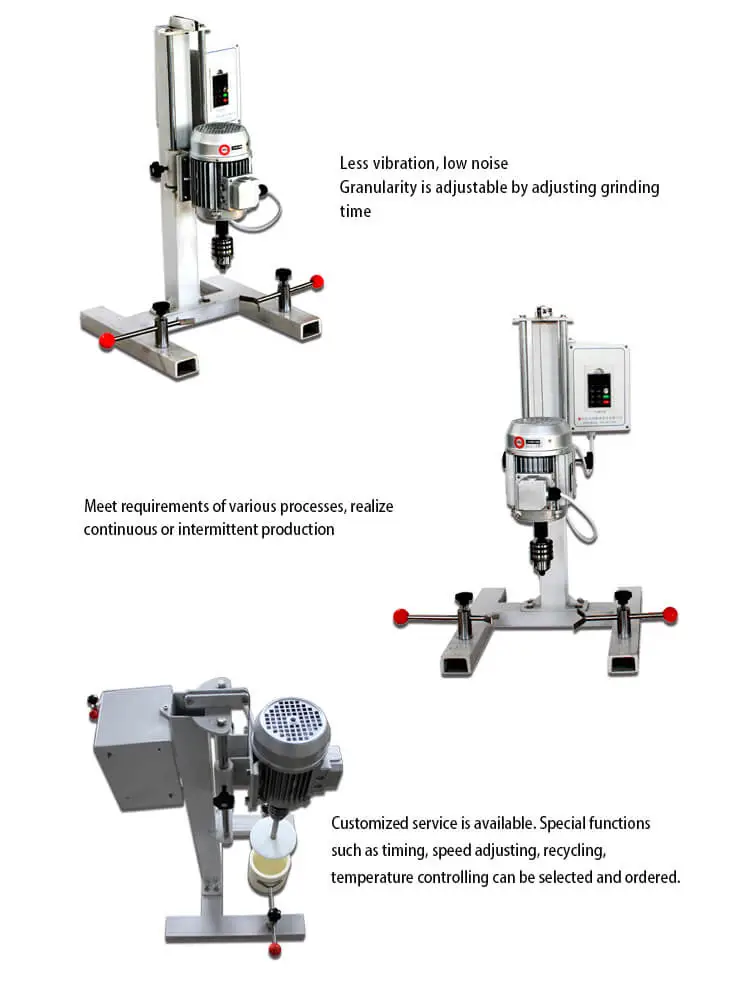

Uphawu/Inzuzo
1. Izinga eliphezulu lokusetyenziswa kwamandla, ukonga amandla.
2. I-Granularity ilungelelaniswa ngokuhlengahlengisa ixesha lokusila.
3. Ukungcangcazela okuncinci, ingxolo ephantsi.
4. Isakhiwo esilula, ukusebenza okulula.
5. Ukuhlangabezana neemfuno zeenkqubo ezahlukeneyo, qaphela imveliso eqhubekayo okanye ephakathi.
6. Ijar enejacket, kulula ukulawula ukushisa kokugaya .
7. Inkonzo eyenzelwe wena iyafumaneka. Imisebenzi ekhethekileyo efana nexesha, ukulungiswa kwesantya, ukuhlaziya, ukulawula ubushushu kunokukhethwa kwaye kuyalelwe.
8. Iindidi zeengqayi zokugaya kwizinto ezahlukeneyo ziyafumaneka kwinketho yomthengi njengensimbi engenasici, i-corundum ceramic, i-polyurethane, i-zirconia kunye nokunye.

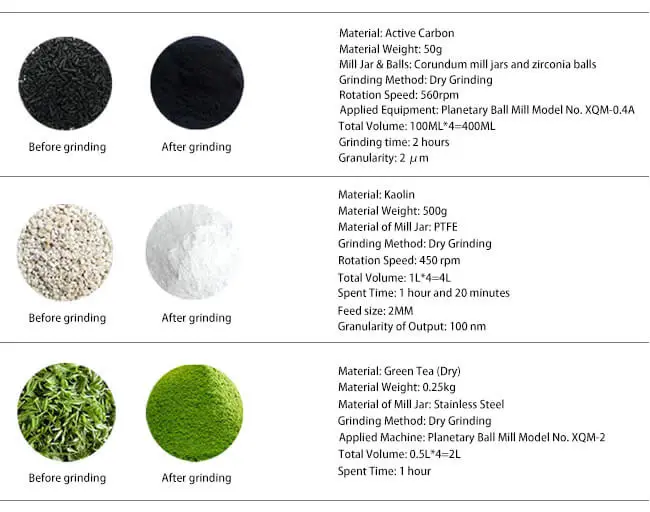

Iimeko zeSicelo sePlanethi yeBhola yeBhola
Iimeko zeSicelo sePlanethi yeBhola yeBhola
Ishiti yedatha
| IiParameters eziphambili ze-Stirred Ball Mill | |||||||||
| Umzekelo NO. | Jikela isantya (rpm) | umqulu (L) | umthwalo isikhundla (L) | Ukunikezwa Amandla (KW/V) | iyafumaneka Izimbi | Ubungakanani bokutya (Mm) | imveliso Ubuncinci (μm) | Indlela yokulawula isantya | Uluhlu |
| JM-1L | 50-1400 | 1 | 0.35 | 0.37KW/220V | Yenziwe ngentsimbi eshayinayo INylon Alumina yodongwe PU Zirconia ngeerubhi PTFE | ≤5 | Μ1μm | Ubuninzi isantya Isiphawuli | ilabhoratri Isixa |
| JM-2L | 50-1400 | 2 | 0.7 | 0.37KW/220V | ≤5 | Μ1μm | |||
| JM-3L | 50-1400 | 3 | 1.05 | 0.37KW/220V | ≤5 | Μ1μm | |||
| JM-5L | 60-600 | 5 | 1.75 | 0.75KW/220V | ≤5 | Μ1μm | Ubuninzi isilungelelanisi sesantya or Isantya esisigxina ukuseta Yeyomthengi ukhetho | Uhlobo oluncinci | |
| JM-10L | 60-560 | 10 | 3.5 | 1.5KW/220V | ≤10 | Μ1μm | |||
| JM-15L | 60-380 | 15 | 5.25 | 2.2KW/380V | ≤10 | Μ1μm | |||
| JM-20L | 60-380 | 20 | 7 | 2.2KW/380V | ≤10 | Μ1μm | Uhlobo lokuKhanya | ||
| JM-30L | 60-310 | 30 | 10.5 | 3KW/380V | IConbon Steel Yenziwe ngentsimbi eshayinayo Ilinen enayiloni Umgca we-PU I-Alumina Ceramic Liner Umgca we-PTFE | ≤10 | Μ1μm | ||
| JM-50L | 60-140 | 50 | 17.5 | 4KW/380V | ≤10 | Μ1μm | |||
| JM-100L | 60-140 | 100 | 35 | 7.5KW/380V | ≤20 | Μ1μm | amashishini uhlobo | ||
| JM-200L | 60-140 | 200 | 70 | 11KW/380V | ≤20 | Μ1μm | |||
| JM-300L | 60-110 | 300 | 100 | 15KW/380V | ≤20 | Μ1μm | |||
| JM-500L | 60-90 | 500 | 170 | 18.5KW/380V | ≤20 | Μ1μm | |||
| JM-600L | 60-90 | 600 | 210 | 22KW/380V | ≤20 | Μ1μm | |||
Isincedisi esisebenzisekayo
| IiParameters eziphambili ze-Stirred Ball Mill | |||||||||
| Umzekelo NO. | Jikela isantya (rpm) | umqulu (L) | umthwalo isikhundla (L) | Ukunikezwa Amandla (KW/V) | iyafumaneka Izimbi | Ubungakanani bokutya (Mm) | imveliso Ubuncinci (μm) | Indlela yokulawula isantya | Uluhlu |
| JM-1L | 50-1400 | 1 | 0.35 | 0.37KW/220V | Yenziwe ngentsimbi eshayinayo INylon Alumina yodongwe PU Zirconia ngeerubhi PTFE | ≤5 | Μ1μm | Ubuninzi isantya Isiphawuli | ilabhoratri Isixa |
| JM-2L | 50-1400 | 2 | 0.7 | 0.37KW/220V | ≤5 | Μ1μm | |||
| JM-3L | 50-1400 | 3 | 1.05 | 0.37KW/220V | ≤5 | Μ1μm | |||
| JM-5L | 60-600 | 5 | 1.75 | 0.75KW/220V | ≤5 | Μ1μm | Ubuninzi isilungelelanisi sesantya or Isantya esisigxina ukuseta Yeyomthengi ukhetho | Uhlobo oluncinci | |
| JM-10L | 60-560 | 10 | 3.5 | 1.5KW/220V | ≤10 | Μ1μm | |||
| JM-15L | 60-380 | 15 | 5.25 | 2.2KW/380V | ≤10 | Μ1μm | |||
| JM-20L | 60-380 | 20 | 7 | 2.2KW/380V | ≤10 | Μ1μm | Uhlobo lokuKhanya | ||
| JM-30L | 60-310 | 30 | 10.5 | 3KW/380V | IConbon Steel Yenziwe ngentsimbi eshayinayo Ilinen enayiloni Umgca we-PU I-Alumina Ceramic Liner Umgca we-PTFE | ≤10 | Μ1μm | ||
| JM-50L | 60-140 | 50 | 17.5 | 4KW/380V | ≤10 | Μ1μm | |||
| JM-100L | 60-140 | 100 | 35 | 7.5KW/380V | ≤20 | Μ1μm | amashishini uhlobo | ||
| JM-200L | 60-140 | 200 | 70 | 11KW/380V | ≤20 | Μ1μm | |||
| JM-300L | 60-110 | 300 | 100 | 15KW/380V | ≤20 | Μ1μm | |||
| JM-500L | 60-90 | 500 | 170 | 18.5KW/380V | ≤20 | Μ1μm | |||
| JM-600L | 60-90 | 600 | 210 | 22KW/380V | ≤20 | Μ1μm | |||
